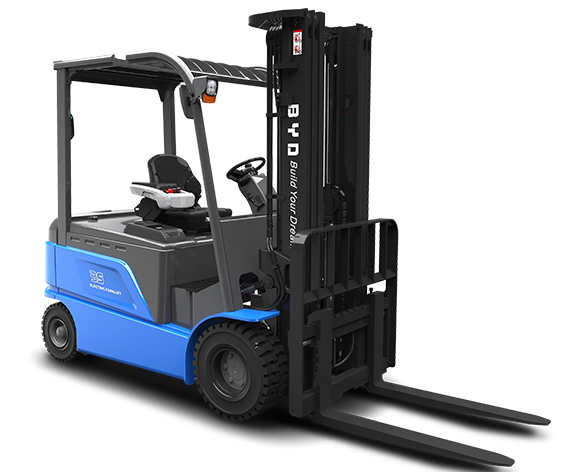

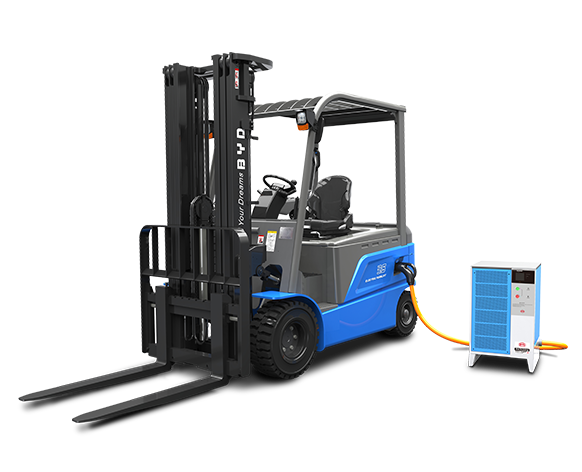

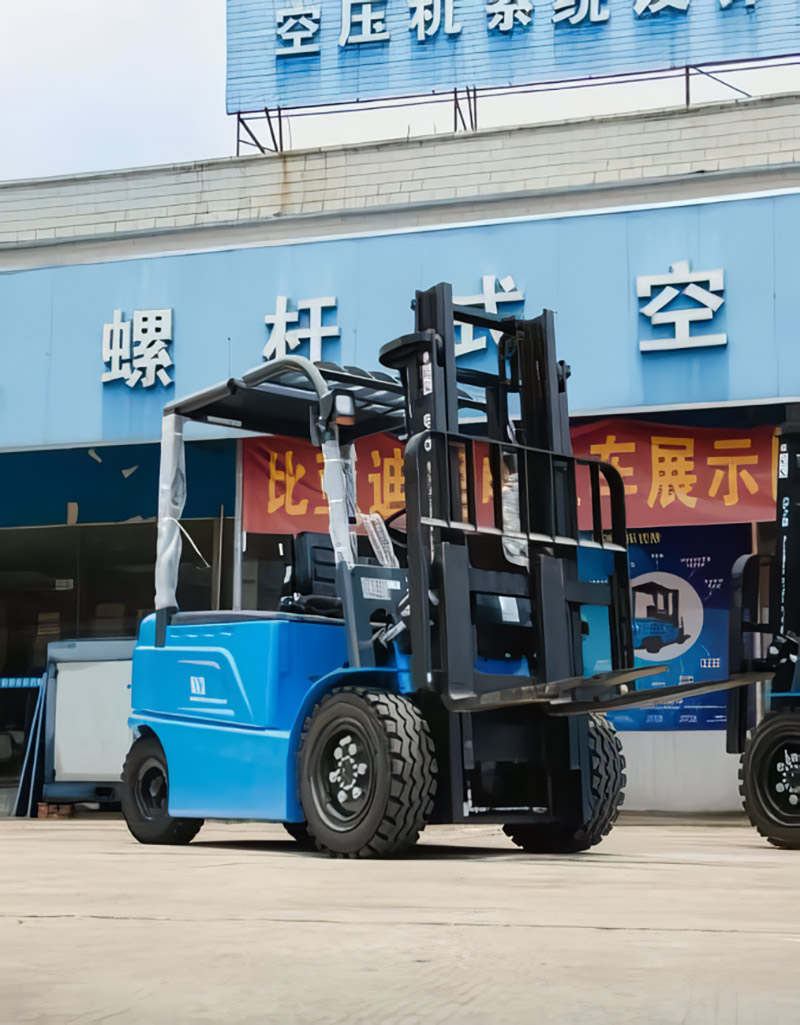

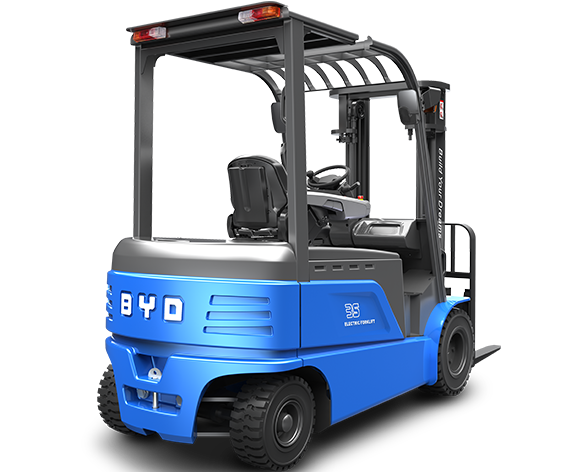

Four Wheel Electric Forklift ECB35

1.Human-Machine. Engineering Mechanical suspension seats with OPS function for safety and comfort. A spacious workspace for the support, a clear and expansive upper and front view, a large reverse assist handle for more effortless and comfortable operation, and a multifunctional color display panel for easily accessible vehicle information.

2.Convenient Maintenance. The vehicle has a simple structure, and the seat can be lifted for easy maintenance. AC motors require no maintenance, and the batteries are maintenance-free, reducing costs associated with replacing carbon brushes and adding distilled water, significantly lowering operating costs.


Contact Now E-Mail Telephone WhatsApp
Product Details

Product description:

The BYD ECB35 is an electric truck with a maximum workload of 3.5 Ton IS designed to improve the day-to-day work of its operators. An ergonomic machine with lithium iron phosphate technology which is the one which differentiates BYD Forklift because it is more efficient, safer, cleaner, and has a longer lifespan than other trucks.


Four Wheel Electric Forklift ECB35


Product Parameter:


Identification

1.1

Manufacturer



BYD

1.2

Model



ECB35

1.3

Drive



Electric

1.4

Operator type



Seat

1.5

Rated capacity

Q

kg

3500

1.6

Load center

c

mm

500

1.8

Load distance, center of drive axle to   fork

x

mm

460

1.9

Wheelbase

y

mm

1725

weight

2.1

Service weight


kg

5440

2.2

Axle load, with load, front/rear


kg

7722/1218

2.3

Axle load, without load, front/rear


kg

2274/3166

Wheels, Chassis



3.1

Tyres



SE

3.2

Tyre size, front



23×10-12

3.3

Tyre size, rear



200×50-10

3.5

Wheels, number front rear (x=driven   wheels)



2×/2

3.6

Track width, front

b10

mm

1110

3.7

Track width, rear

b11

mm

955

Basic dimensions



4.1

Tilt of mast/fork carriage   forward/backward

a/b

deg

5/8

4.2

Height, mast lowered

h1

mm

2105

4.3

Free lift

h2

mm

130

4.4

Lift height

h3

mm

3000

4.5

Height, mast extended

h4

mm

4000

4.7

Height of overhead guard

h6

mm

2215

4.8

Seat height

h7

mm

1140

4.12

Coupling height

h10

mm

333

4.19

Overall length

l1

mm

3630

4.20

Length to face of forks

l2

mm

2560

4.21

Overall width

b1

mm

1360

4.22

Fork dimensions

s/e/l

mm

50/125/1070

4.23

Fork carriage ISO 2328,class/type A,B



3A

4.24

Fork carriage width

b3

mm

1145

4.31

Ground clearance, with load, below mast

m1

mm

110

4.32

Ground clearance, center of wheelbase

m2

mm

130

4.33

Aisle width of pallets 1000×1200   crossways

Ast

mm

3875

4.34

Aisle width of pallets 800×1200   lengthways

Ast

mm

4070

4.35

Turning radius

Wa

mm

2210

Performance Data

5.1

Travel speed, with/without load


Km/h

20/20

5.2

Lift speed, with/without load


mm/s

380/450

5.3

Lowering speed, with/without load


mm/s

550/450

5.6

Max. drawbar pull, with/without load


KN

17.2/13.6

5.8

Max. gradeability, with/without load


%

20/20

5.10

Service brake



Mech./Hydr.

Motor

6.1

Drive motor rating S2 60 min.


kW

10×2

6.2

Lift motor rating at S3 15%


kW

24

6.4

Battery voltage, nominal capacity K5


V/Ah

80/540

6.5

Battery weight


kg

1460

Others



8.1

Type of drive control



AC

8.2

Operating pressure for attachments


Bar

180

8.4

Sound level at the driver’s ear


dB(A)

≤75

8.5

Towing coupling, type



PIN


Mast specifications:

h3  Lifting Height(mm)     h2  Full Free Lift Height(mm)     h1  Height, Mast Full Lowered(mm)  h4  Height, Mast Full Extended(mm)(Load Backrest 1000mm)     α  Tilt Forward   β Tilt Backward


Mast Specifications(mm)

h3

h2

h1

h4

α

β

Residual Capacity(kg)

ECB35@500MM

ECB35@600MM

2-stage standard Mast



3000

130

2105

4000

3500

3430

3300

130

2255

4300

3500

3330

3500

130

2355

4500

3500

3270

3700

130

2455

4700

3430

3200

4000

130

2605

5000

3350

3120

4500

130

2905

5500

3150

2940

4800

130

3055

5800

3050

2860

5000

130

3255

6000

3000

2820

5500

130

3455

6500

2870

2690

6000

130

3705

7000

2720

2560

2-stage FFL Mast



3000

1105

2105

4000

3500

3430

3300

1255

2255

4300

3500

3330

3500

1355

2355

4500

3500

3270

4000

1605

2605

5000

3350

3120

3-stage FFL Mast(Dual full free lift   mast)



4000

990

1990

5500

3350

23120

4500

1190

2190

5500

3150

2940

4800

1340

2340

5800

3050

2860

5000

1340

2340

6000

3000

2820

5500

1540

2540

6500

2870

2680

6000

1740

2740

7000

2720

2560

6500

1955

2955

7500

2500

2400

3-stage FFL Mast(Single full free lift   mast)

4000

1090

2090

5000

3350

3120

4350

1205

2205

5350

3180

2980

4500

1255

2255

5500

3150

3100

4800

1355

2355

5800

3050

2940

5000

1420

2420

6000

3000

2820

5300

1520

2520

6300

2920

2730

5500

1585

2585

6500

2870

2680

6000

1750

2750

7000

2720

2560

6500

1910

2910

7500

2500

2400

Classification:

1.Multi-function armrest with fingertip control

2.Seat with full suspension

3.Mast with full free double lifting cylinders

4.Curve speed adjustment to improve stability and reduce risk of overturning

5.Brake assist when it detects that the operator is releasing the brake on a ramp or slope

6.Limitation of the front tilt angle to reduce the risk of load drop

7.When the load exceeds 10% of the set weight, the engine stops working for safety’s sake

8.Multifunction TFT display with scrolling speed, remaining battery capacity, clock with working hours and accumulated hours, and three speed modes


Four Wheel Electric Forklift ECB35

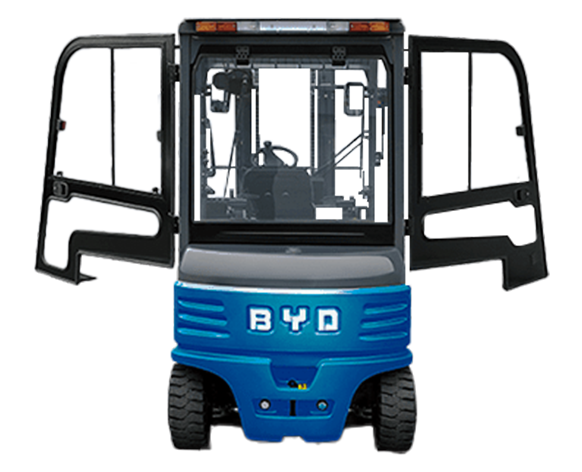

Optional configuration:

1.Reverse voice warning 2.Reverse horn 3.Reverse camera 4.Reverse radar 5.Forklift camera 6.Orange seatbelt warning 7.Strobe light 8.Front blue light 9.Rear blue light 10.Work lighting (rear) 11.Blue laser light 12.Panoramic rearview mirror 13.Fan 14.Fire extinguisher 15.Special key (single-point ignition switch)16.Synchronized steering 17.Turning speed limit 18.Simple canopy 19.Semi-enclosed cabin (front windshield wiper + rain canopy) 20.Fully enclosed cabin 21.200A charger 22.Inflatable tires, eco-friendly tires 23.Customized door frame 24.Customized cargo guard 25.Customized fork arms


Four Wheel Electric Forklift ECB35


Use:

Manufacturing, Paper Industry, Automotive Industry, Feed Industry, Household Appliance, Logistics, Food and Beverage


Four Wheel Electric Forklift ECB35


Product inspection:

When producing forklift products, BYD Forklift manufacturers usually carry out strict product inspection and quality control to ensure that product quality and performance meet high standards. These product inspections start with the inspection of raw materials: in the production process, BYD checks the raw materials used. This includes checking steel, electronic components, lubricants, coatings, etc. Raw materials must meet specific quality standards and specifications.

Manufacturing Process Inspection: During the forklift's manufacturing process, BYD monitors and inspects key process steps to ensure that each component meets design specifications. This includes inspections of welding, mechanical processing, electrical connections, and other aspects.

Performance Testing: After the forklift is assembled, performance testing is conducted. This includes checking engine power, suspension systems, brake systems, driver control systems, and more to ensure that the forklift's performance meets specified standards.

Safety Testing: BYD forklifts undergo safety testing to ensure compliance with relevant safety standards. This includes collision tests, stability tests, electrical safety tests, and others.

Quality Control: BYD implements a quality control system, including inspection and testing procedures, document records, employee training, and more, to ensure product consistency and quality.

Final inspection: After the forklift production is completed, the final inspection is carried out. This involves a thorough inspection of the entire forklift to ensure that all components are installed correctly, with no apparent defects and excellent performance.

Product certification: Once the forklift has passed all the necessary inspections and tests, it can obtain the relevant product certification, which proves that it meets international and regional quality and safety standards.


Four Wheel Electric Forklift ECB35

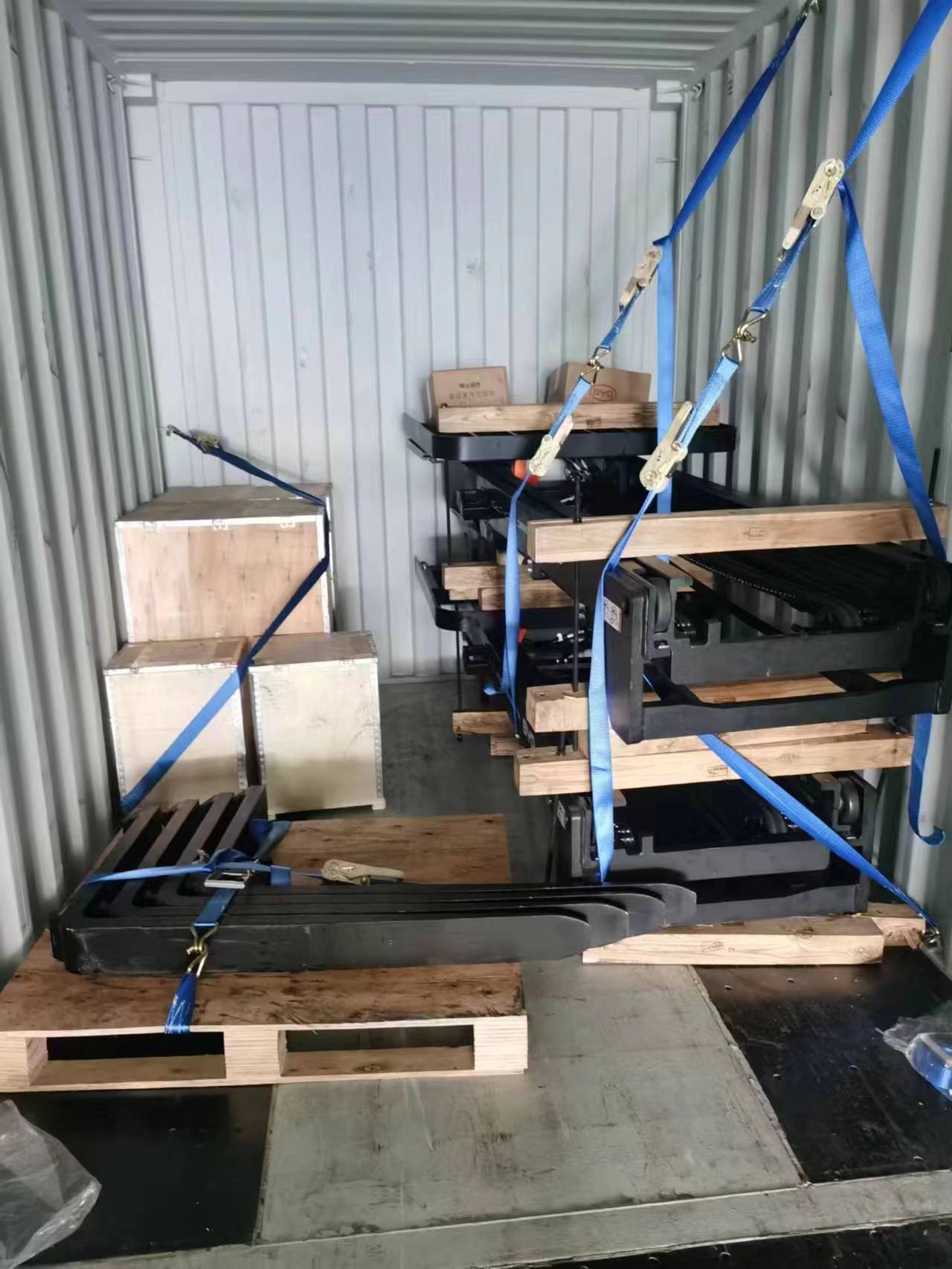

Packaging and transportation:

The packaging and transportation of BYD forklifts are typically handled by the BYD's manufacturer and suppliers to ensure that the products are not damaged during transit.

Packaging: Forklifts are usually packaged before leaving the factory to protect their appearance and mechanical components from damage. Packaging typically includes the use of wooden crates, foam padding, plastic film, and strapping belts to ensure that the forklifts are not affected by bumps and collisions during transportation.

Inspection and Testing: Before leaving the factory, manufacturers typically conduct rigorous inspections and testing on the forklifts to ensure that they function properly and can be safely transported. This includes checking mechanical components, batteries, brake systems, and more.

Shipping: Once the forklifts are properly packaged and pass inspection, they are prepared for shipping. Forklifts can be transported to their destination via road transportation, sea shipping, air freight, or other methods, depending on the distance, region or country and customer requirements.

Documentation and Permits: Depending on the requirements of the destination country or region, relevant documents and permits may need to be provided to ensure that the forklifts can legally enter and be used in the destination country or region.


Four Wheel Electric Forklift ECB35


Company introduction:

BYD Forklift, established in 2009, is a subsidiary of BYD Co., Ltd., located in the Zhenjiang district of Shaoguan City. The total investment for the project is 515 million RMB, covering an area of approximately 700,000 square meters. It is mainly responsible for producing BYD electric forklift series, including the electric counterbalance forklift series, electric warehouse forklift series, and electric tow tractor series, among others.

BYD Forklift possesses a complete forklift production line, including four machining and welding lines, one painting line, and three final assembly lines, achieving an annual production capacity of 30,000 units. Furthermore, the factory has a professional testing line and a comprehensive quality system, certified under ISO9001, to ensure the quality of every forklift and provide customers with satisfactory quality and excellent service.

BYD Forklift has always aimed to create a leading global brand in electric forklifts. 'Pursuing excellence and continuous innovation' is the development philosophy of BYD Forklift, continuously optimizing and upgrading its products, covering a perfect range of applications from warehousing and logistics to port and terminal logistics. The market expansion includes multiple industries such as pharmaceuticals, food, cold chain processing, cosmetics, logistics, and more. In the process of market feedback, BYD electric forklifts have fully demonstrated their significant advantages in green environmental protection and energy efficiency, receiving unanimous praise from customers at home and abroad, laying a solid foundation for BYD electric forklifts to become a globally trusted brand.

In order to meet the needs of market development, BYD Forklift is building a comprehensive electric forklift base integrating research and development, production, sales and after-sales service in Ningbo Industrial Park. After the completion of the project, it will take the Yangtze River Delta as the center, cover East China, radiate the whole country and face the export. Byd Forklift Ningbo factory plans a total investment of 500 million yuan, covers an area of 60,000 square meters, set vehicle processing, welding, painting, assembly, modification and other processes in one, the annual production of electric balance forklift 20,000 units, storage forklift 30,000 units.


Four Wheel Electric Forklift ECB35


Customer visit:

In advance of a customer visit, the sales or customer service team will usually make an appointment with the customer and plan the time, place, and agenda for the visit. This is done by phone, email or other means of communication. Sales or customer service teams specify topics to discuss with customers, including product demonstrations, problem solving, training, business negotiations, or contract signing.Byd's customer service team usually prepares relevant documents and presentation materials to share with customers, which may include product brochures, presentation slides, samples, etc.After the visit, BYD's sales or customer service team usually takes notes of the meeting, the results of the discussions and the next steps. We are also in constant communication with our customers to ensure that their needs are met


Four Wheel Electric Forklift ECB35


FAQ:

1.Q: Does BYD forklifts provide after-sales service?

A: Yes, BYD offers comprehensive after-sales services, including maintenance, spare parts supply, training, and technical support, to ensure that customers' forklifts remain in optimal condition.

2.Q: Does BYD forklifts offer customization options?

A: Yes, BYD typically provides customization options to meet specific customer requirements. You can get in touch with their sales team to discuss the possibilities of customizing a forklift.

3.Q: Do BYD electric forklifts comply with international standards and certifications?

A: Yes, BYD electric forklifts typically conform to international safety and quality standards and obtain relevant certifications. This includes CE certification, ISO certification, and more, to ensure the legality and quality of the products in international markets.

4.Q: Can BYD electric forklifts adapt to different power standards?

A: Yes, BYD electric forklifts usually have multi-power compatibility and can adapt to different countries' and regions' power standards and voltages. This allows them to be used globally.

5.Q: Are BYD electric forklifts suitable for indoor and outdoor use?

A: Yes, BYD electric forklifts are suitable for both indoor and outdoor use. Their design typically includes features that adapt to various working environments, including indoor warehousing and outdoor logistics operations.

6.Q: What is the range or battery life of BYD electric forklifts?

A: The range or battery life of BYD electric forklifts depends on the specific model and battery capacity. BYD electric forklifts usually offer adjustable battery capacities to meet various application needs. The range or battery life is typically specified in the product specifications.
